Live collection of plug-and-play Home Assistant packages. Each YAML file in this folder bundles sensors, helpers, automations, scripts, and Lovelace assets needed for a specific subsystem so you can drop it into configuration.yaml with a single packages: include.

Quick navigation

Home Assistant header

Why packages exist

  • Keep everything for a subsystem (alarm, garage, water shutoff, etc.) in one file, which makes versioning, troubleshooting, and sharing dramatically easier.
  • Encapsulate helpers (input_booleans, sensors, scripts) so enabling/disabling a capability is as simple as moving one file in or out of the packages/ include.
  • Document hardware dependencies right next to the logic so you remember which gear keeps each automation alive.

How to adapt a package quickly

  • Enable packages: under homeassistant: in your configuration.yaml, then drop any of these YAML files into the folder with your own entity IDs/secrets.
  • Scan the comments at the top of each package for credential requirements, MQTT topics, or REST endpoints that need to be swapped.
  • Need reusable triggers or button automations? Check the companion triggers subfolder for examples before rolling your own.
Package What it unlocks Notable entities / services
alarm.yaml NodeMCU-powered perimeter monitoring with arm/disarm helpers and rich notifications. binary_sensor.mcu*_gpio*, group.family, notify + siren scripts
garadget.yaml MQTT-based control + status for both garage doors, feeding entry/exit lighting routines. cover.large_garage_door, cover.small_garage_door, sensor.garadget_reflection
august.yaml Front-door August smart lock with Alexa Show camera pop-up when unlocked. lock.front_door, media_player actions for front doorbell camera
holiday.yaml REST-driven US holiday + flag sensors that color scenes and exterior lighting. sensor.holiday, sensor.flag, JSON feed at config/json_data/holidays.json
lightning.yaml Blitzortung lightning counter monitoring with snoozeable push actions. sensor.blitzortung_lightning_counter, input_boolean.snooze_lightning, notify engine actions
phynplus.yaml Tie the Phyn Plus smart shutoff into HA notifications, automations, and valve overrides. valve.phyn_shutoff_valve, binary_sensor.phyn_leak_test_running, script.notify_engine_two_button
powerwall.yaml Track Tesla Powerwall grid status and shed loads automatically when off-grid. binary_sensor.powerwall_grid_status, sensor.powerwall_*, script.notify_engine
vacuum.yaml Dreame (ex-Neato) vacuum orchestration with maintenance reminders and reset helpers. sensor.l10s_vacuum_task_status, sensor.l10s_vacuum_sensor_dirty_left, button.l10s_vacuum_reset_sensor
hass_agent_homepc.yaml Mirrors PC lock/unlock state from HASS.Agent to the office lamp for instant desk presence cues. sensor.carlo_homepc_carlo_homepc_sessionstate, switch.office_lamp_switch
finance.yaml Yahoo Finance sensor bundle for portfolio glances and Lovelace cards. sensor.tsla, sensor.aapl, sensor.amzn, sensor.msft

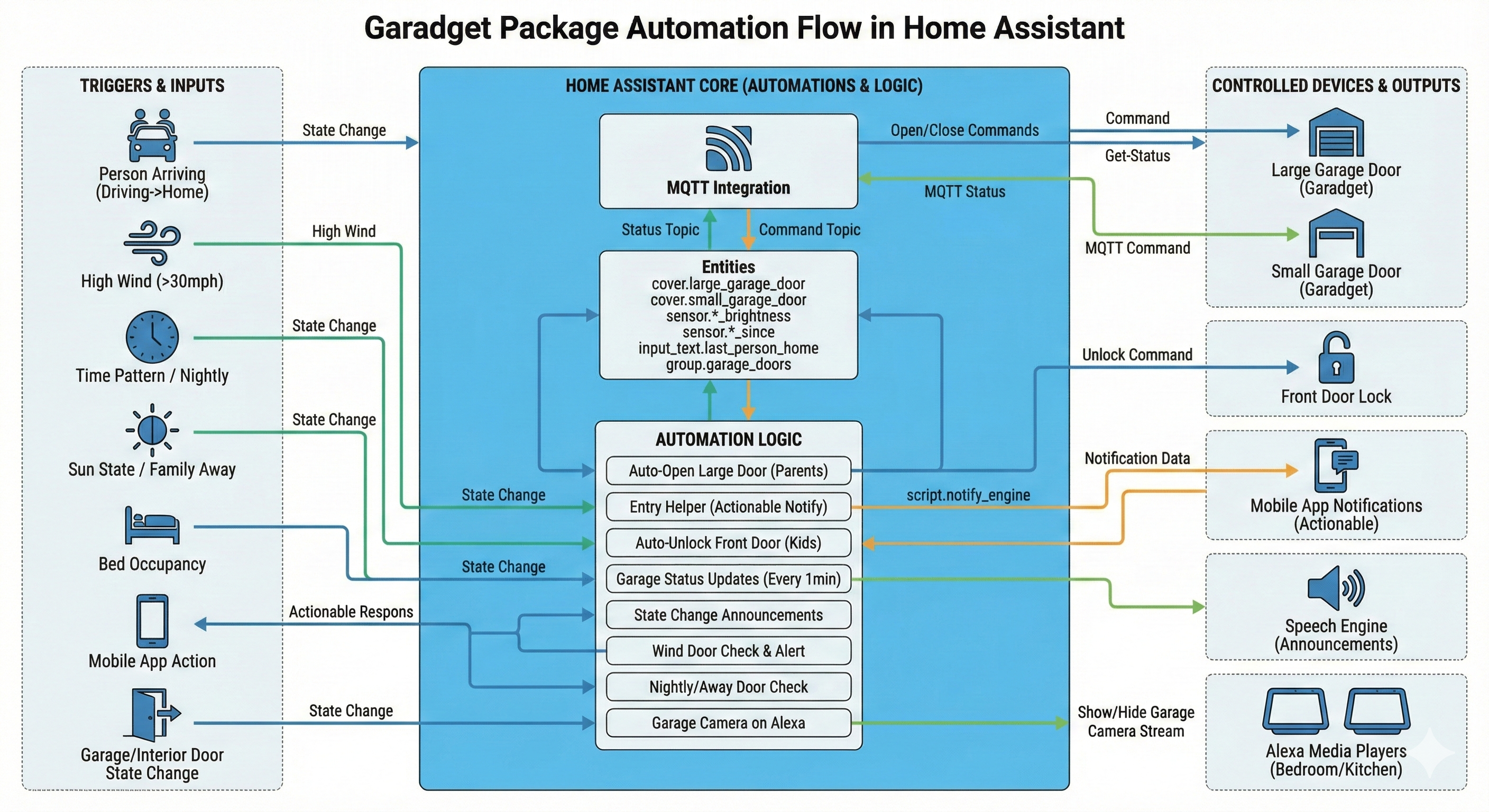

Garadget automations

  • Logic lives in garadget.yaml: auto-open on arrival, entry helper prompt (unlock front door or open garage), auto-unlock for Paige/Justin, wind checks, nightly open-door reminders, and camera pop-ups.
  • MQTT-based covers for large/small doors; notifications and speech wired to the house notify/speech engines. Garadget Automation

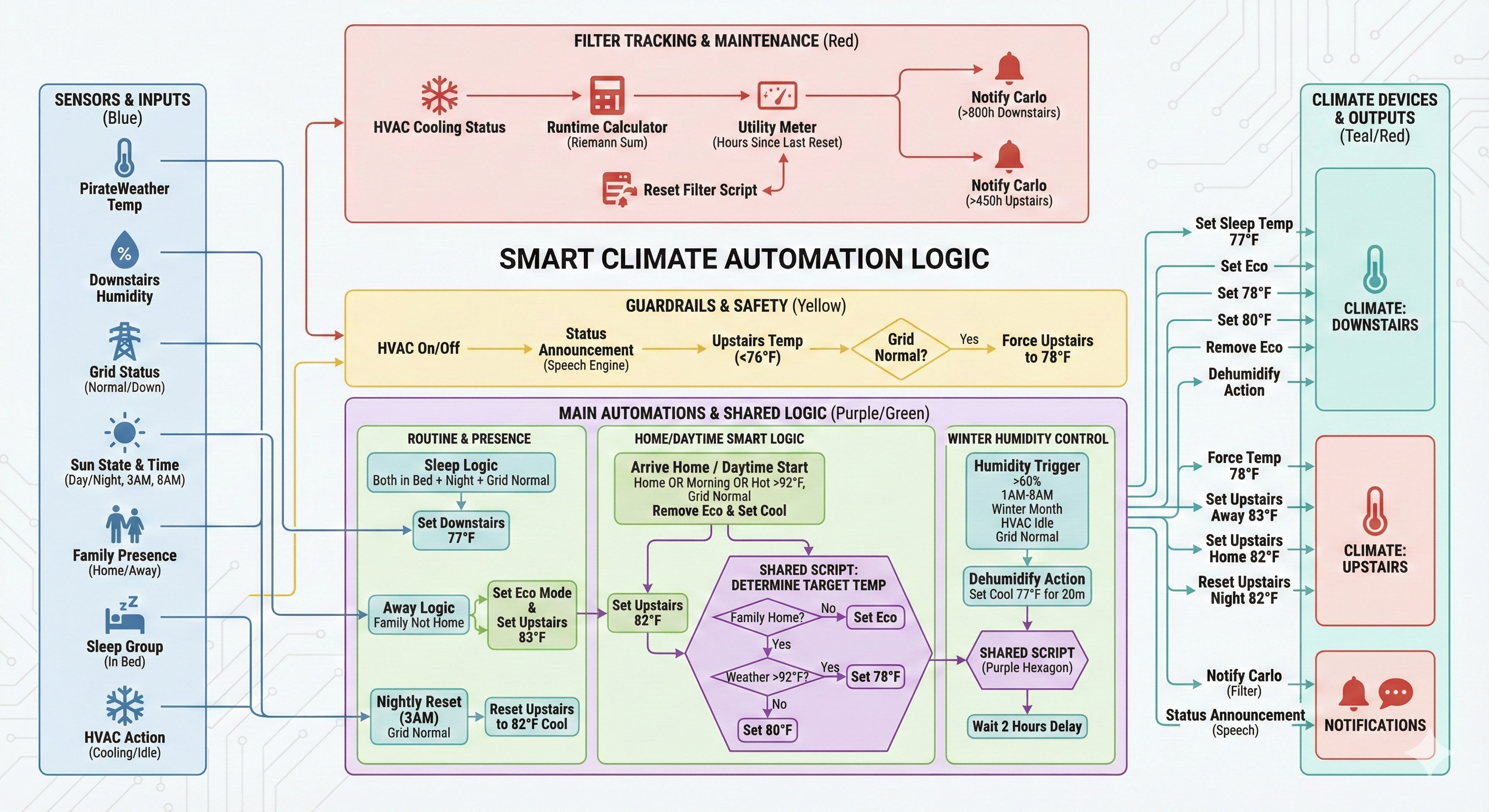

Nest climate control

  • Logic lives in climate.yaml and centralizes downstairs/upstairs Nest schedules, grid-aware guardrails, humidity pulses, and presence/weather-based targets.
  • Shared script keeps targets consistent: away → eco, home + >92°F → 78°F, home default → 80°F. Grid-down conditions pause non-essential cool-downs. Nest Climate Control

Blog & video deep dives

When a package has a dedicated blog post or video, I link it right inside the YAML comments. Here are the same references for quick browsing:

Package Why read/watch Deep dive links
finance.yaml Custom Yahoo Finance integration overview and setup notes. Blog
garadget.yaml MQTT garage door setup plus the follow-up on the access token change. Blog: Integration guide · Blog: Token fix
holiday.yaml How the holiday/flag sensor works and drives lighting playlists. Blog + video breakdown
lightning.yaml Blitzortung detector wiring, strike alerts, and snooze workflow. Blog
phynplus.yaml Installing Phyn Plus and wiring its leak events into HA automations. Blog
powerwall.yaml Monitoring Tesla Powerwall health + what to automate when the grid drops. Blog
vacuum.yaml Keeping Neato/Dreame bots smart with HA scenes and maintenance timers. Blog
grafana.yaml.disabled Rendering Grafana dashboards to images for Lovelace and social posts. Blog · Blog · Video
august.yaml Smart lock control and status from HA. YouTube short

These are the devices that power the packages above. Affiliate links never change the price but they do help fund more tinkering—thanks!

Device Package(s) Automation tie-in Buy
Garadget garage door controller garadget.yaml MQTT covers feed entry lighting, notifications, and security checks. Buy
August smart lock august.yaml Front-door lock/unlock + status for routines and alerts. Buy
Amazon Echo Show Pops up the front doorbell camera when the August lock unlocks. august.yaml Buy
Phyn Plus water shutoff phynplus.yaml Leak events trigger valve closes + critical push notifications. Buy
Rachio sprinkler controller rachio.yaml Rain skips and seasonal watering adjustments happen automatically. Buy
Tesla Powerwall 2 powerwall.yaml Grid outages kick off load-shed scripts and status pings. Buy
Google Nest thermostat climate.yaml Presence/weather/grid-aware cooling targets, humidity pulses, and eco recovery. Buy
Dreame/Neato vacuum vacuum.yaml Scheduled cleaning, maintenance reminders, and voice callouts. Buy
NodeMCU motion/contact sensor alarm.yaml, office_motion.yaml ESP8266 nodes feed the alarm matrix and room-aware lighting. Buy
Roku streaming device roku.yaml Media presence drives lighting, announcements, and scenes. Buy

Tips for extending these packages

  • Most packages expose booleans or helpers that you can hook into with your own automations; keep using those entities instead of editing the package so upgrades stay clean.
  • If you clone a package, rename the id: fields inside the automations to avoid duplicate UUIDs.
  • Document your own blog or video resources at the top of each file—the README table above will make it easy to find them later.
